85 Jetta wiring diagram?

Big Toe · « **on:** May 30, 2007, 06:46:08 PM »

I'm having a bit of trouble with the radiator fan :?: , does anybody have a book or wiring diagram :?: Fan runs with all the sensors and relay disconnected. :roll: Electrical, great fun :lol:

Bumble65 · « **Reply #1 on:** May 30, 2007, 11:23:42 PM »

I have a couple of Bently books for the Sciroccos. They should be able to help. They aren't in the house right now otherwise I'd look. I'll be at the cruise-in on Friday with them since they are always in the car if you want to can wait/want to look at them then.

I'm still looking on the watercooled sites that I get help from to see if I can find a diagram for you.

Big Toe · « **Reply #2 on:** May 31, 2007, 08:42:53 PM »

Thanks for the help. We're getting ready for vacation, won't be able to make it to the cruise in, we'll be back on the 8th. I'll touch base with you then.

Zen · « **Reply #3 on:** May 31, 2007, 11:32:53 PM »

I have a Bentley for Dashers . . . but hopefully VW wired your Jetta a little different than they did a Dasher. :lol:

Big Toe · « **Reply #4 on:** June 09, 2007, 07:44:19 AM »

Dashers seem to be different animals all together :lol: I'm not use to Jettas, thats for sure, it was a cheap purchase

Did you have any luck Matt :?: I think my temp gauge might be fried.

Bumble65 · « **Reply #5 on:** June 12, 2007, 06:17:06 PM »

I didn't have any luck finding one online. I would say that the problem is the fan switch if you having problems overheating due to the fan not coming on. Or is just you don't think the temp guage isn't giving you an accurate reading? I could take a picture of the diagrams in my Bently; however, I would not be able to post them due my computer deciding to stop working and not turn on. I'm having to use my Nintendo Wii to use "those internets" until I fix it.

VWGirl · « **Reply #6 on:** June 13, 2007, 11:08:34 AM »

i actually have a manual for this car... too bad it's in FL... it's still sealed in it's packaging even...

attack chicken · « **Reply #7 on:** June 13, 2007, 05:00:46 PM »

I can probably get one from work...can't remember what year the computer lets off at, will check tomorrow.
Rick.

« **Reply #8 on:** June 13, 2007, 08:49:17 PM »

I have a VoA manual for an 84 I can scan if it might help...

Mike

attack chicken · « **Reply #9 on:** June 16, 2007, 07:29:24 PM »

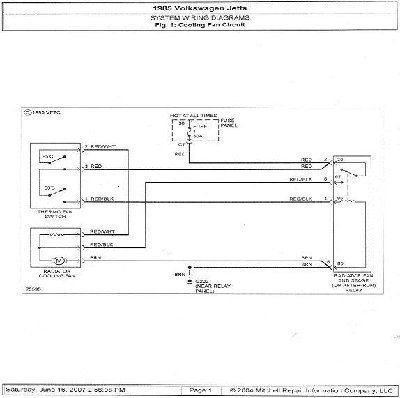

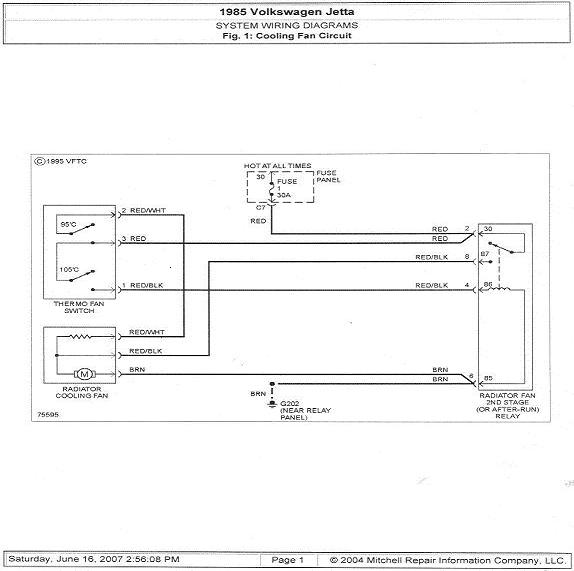

Here is what I have....Sorry it took so long, I just forgot the other day.

Hope this helps!
Rick.

attack chicken · « **Reply #10 on:** June 16, 2007, 07:44:30 PM »

Ahhhhh crap, I guess it would be better if I could just e-mail this since I cannot for the life of me get it scanned where you can read it!!!

I also have a engine compartment view that I could e-mail.
Rick.

VWGirl · « **Reply #11 on:** June 17, 2007, 09:27:34 AM »

i can read that...
