Topic: 77 Westfalia Fuse Box Layout (Read 3956 times)
Ruttco
Ooltewah, TN
Joined: Oct 2008
Posts: 137
77 Westfalia Fuse Box Layout
«
on:
May 01, 2009, 12:53:02 PM »
I am looking for a guide as to what Amp fuses go in each spot. I am pretty sure that they are all wrong right now and would like to get them where they are supposed to be.
Logged
Zen
Show Chairman
Club Member
LaFayette, GA
Joined: Dec 2001
Posts: 8842
Liked: 2 times
77 Westfalia Fuse Box Layout
«
Reply #1 on:
May 01, 2009, 01:27:50 PM »
Go to
http://www.type2.com
- click on the link to the Library and go to the electrical section. They have color coded wiring diagrams for most air-cooled VWs posted. VW changed their diagram style in '73 . . . the old ones are easy to follow, the 73 and up are a challenge to read if you're not an electronics expert, but they should help you out with the fuses.
Logged
Zen
"In theory there is no difference between theory and practice. In practice there is." -- Yogi Berra
"OK !!!!! ALL TOGETHER NOW !!!! Bosch-Bosch- Bosch !!!!!!!!!!!!!!" -- Ret.Bugtech (from the Help With a Slow Starter thread)
Ruttco
Ooltewah, TN
Joined: Oct 2008
Posts: 137
77 Westfalia Fuse Box Layout
«
Reply #2 on:
May 01, 2009, 01:50:23 PM »

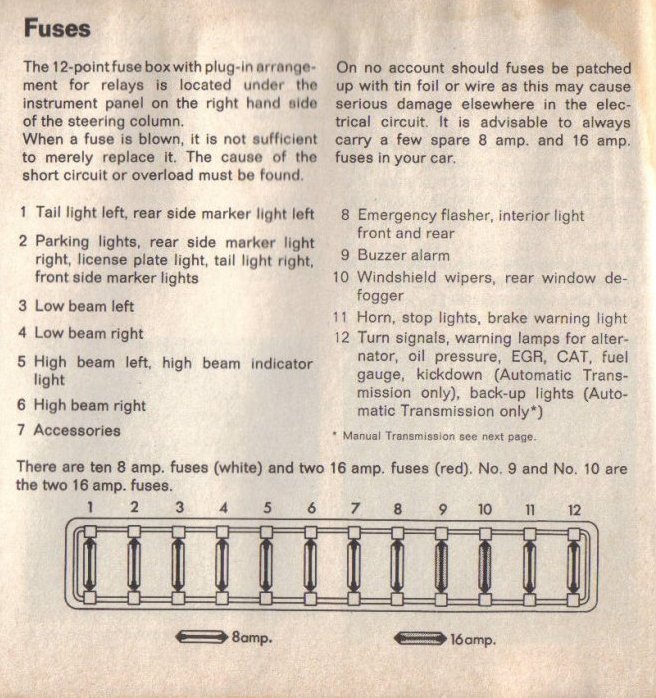

Thanks for the help Zen. The wiring diagram I will hand to my buddy that is an electrician. I did find this that answered my question.
http://www.thesamba.com/vw/archives/info/wiring/75bus_fuses.jpg
This is for a 75 but it seems to be the same as the 77
Logged
Justin
Lafayette, GA
Joined: Mar 2005
Posts: 172
77 Westfalia Fuse Box Layout
«
Reply #3 on:
May 01, 2009, 05:50:27 PM »
You should buy a bentley manual for it as well. The diagram for the fuel injected busses is hell to read. I think I got it tackled though
Logged
NOBAMA 2012!!!! VOTE NO!!
Ruttco
Ooltewah, TN
Joined: Oct 2008
Posts: 137
77 Westfalia Fuse Box Layout
«
Reply #4 on:
May 01, 2009, 06:02:15 PM »
Luckily this one has a single carb and not fuel injected. I have no clue about working on fuel injection.
Logged
